msgProc: Gestures

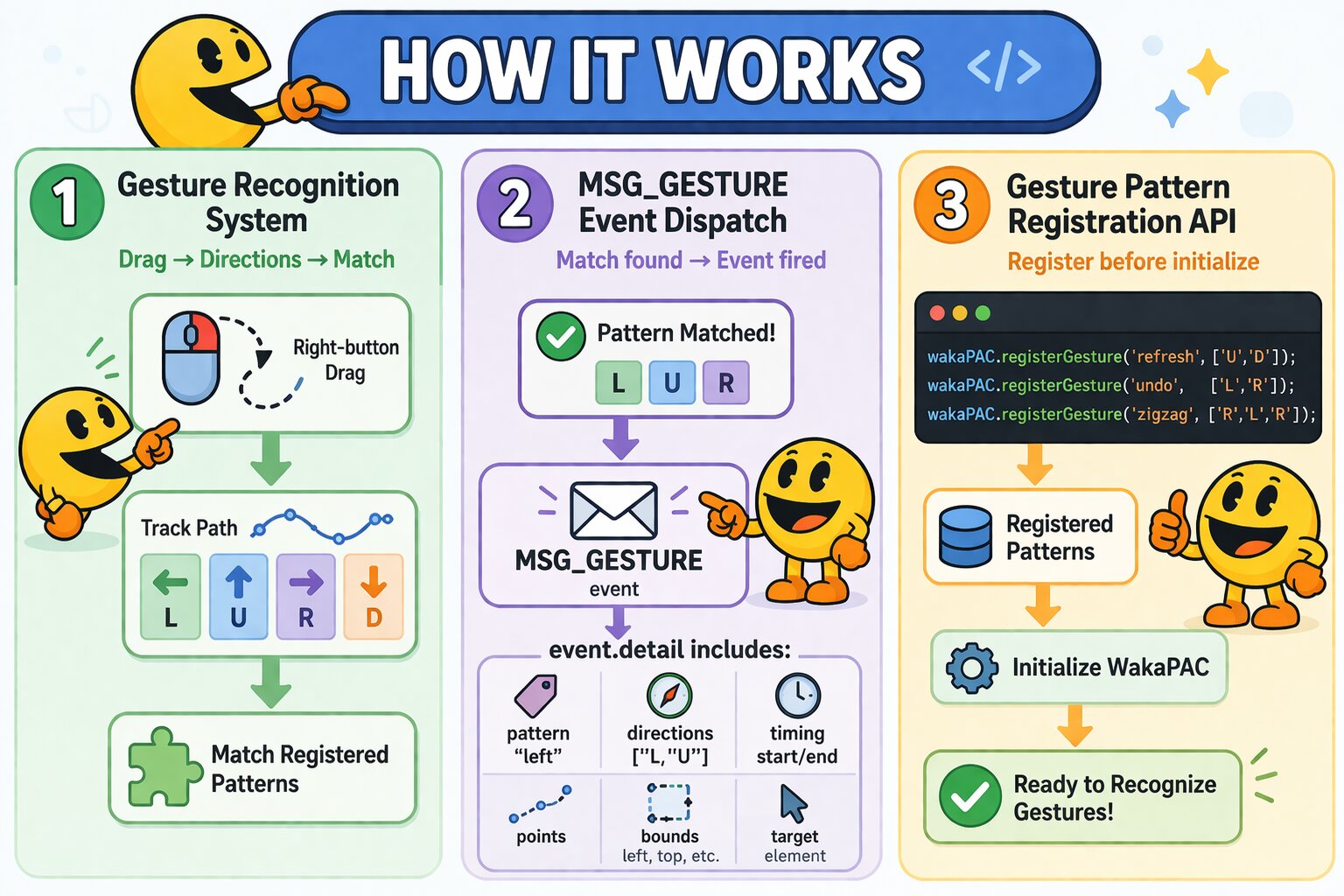

Mouse gestures let users trigger actions by drawing shapes with the right mouse button. The toolkit tracks right-button drag motions, converts them into directional sequences, and dispatches MSG_GESTURE when a registered pattern is recognized.

explanation

Messages

MSG_GESTURE

MSG_GESTURE fires when a registered gesture pattern is recognized after the user completes a right-button drag. A stationary right-click fires MSG_RCLICK instead — any drag suppresses both MSG_RCLICK and the browser context menu. See Gesture and Context Menu Interaction below.

Message Parameters

Parameter Type Description
wParam number Reserved (always 0) — a gesture carries no modifier-key state of its own
lParam number Packed coordinates of the gesture path's bounding-box center (container-relative), not the drag's start or end point. Extract using wakaPAC.MAKEPOINTS()

Detail Properties

Property Type Description
pattern string Pattern name (e.g., 'left', 'L', 'custom-name')
directions string[] Array of direction codes (e.g., ['L', 'U']). Directions: 'L'=left, 'R'=right, 'U'=up, 'D'=down
pointCount number Number of points recorded along the gesture path (jitter-filtered — points closer than the minimum spacing aren't recorded separately)
startX / startY number Container-relative coordinates of where the gesture path started
endX / endY number Container-relative coordinates of where the gesture path ended
duration number Milliseconds from the initial right-button press to release
bounds Object Bounding box of the drawn path, container-relative, DOMRect-like format: {x, y, left, top, right, bottom, width, height} (x/y are aliases for left/top)
target HTMLElement The control the event is addressed to, resolved the same way as other mouse messages — based on where the right button was released (mouseup), not where the gesture started
originalEvent Event Original browser mouseup event

Example: Navigation Gestures

msgProc(event) {
    if (event.message === wakaPAC.MSG_GESTURE) {
        switch(event.detail.pattern) {
            case 'left':
                this.navigateBack();
                return false;

            case 'right':
                this.navigateForward();
                return false;

            case 'up':
                this.scrollToTop();
                return false;

            case 'down':
                this.scrollToBottom();
                return false;
        }
    }
}

API

registerGesture()

wakaPAC.registerGesture(name, directions)

Registers a custom gesture pattern. Must be called before initializing WakaPAC. Patterns are matched against the direction sequence recorded during a right-button drag.

Parameter Type Description
name string Pattern name, returned in event.detail.pattern when matched
directions string[] Ordered sequence of direction codes: 'L', 'R', 'U', 'D'

Example: Register Custom Patterns

// Register before initializing WakaPAC
wakaPAC.registerGesture('refresh', ['U', 'D']);        // Up then down
wakaPAC.registerGesture('undo',    ['L', 'R']);        // Left then right
wakaPAC.registerGesture('zigzag',  ['R', 'L', 'R']);  // Right-left-right

wakaPAC('#app', { /* ... */ });

unregisterGesture()

wakaPAC.unregisterGesture(name)

Removes a previously registered gesture pattern. Built-in patterns can also be unregistered this way.

Parameter Type Description
name string Name of the pattern to remove

Built-in Gesture Patterns

WakaPAC includes common single-direction and L-shape patterns out of the box:

Pattern Name Directions Common Use
'right' R Forward navigation, next item
'left' L Back navigation, previous item
'up' U Scroll to top, collapse
'down' D Scroll to bottom, expand
'L' D, R New tab, new item
'inverted-L' D, L Close tab, delete item

Gesture Recognition

The toolkit tracks mouse position throughout the drag and segments the path into cardinal directions. When movement exceeds 30 pixels, the dominant axis determines the direction code — diagonal movement resolves to whichever axis (horizontal or vertical) is closer within 45°. A new segment begins when the direction changes by more than 45°. On mouse release the recorded sequence is matched against all registered patterns; the first exact match fires MSG_GESTURE. Unrecognized sequences do not fire MSG_GESTURE, but all right-button drags suppress the context menu regardless.

Recognition Constraints

Constraint Value Description
Minimum point spacing 10 pixels Filters mouse jitter — points closer together than this aren't recorded as separate path points
Minimum segment length 30 pixels Prevents accidental jitter from being recognized as direction changes
Maximum duration 2 seconds Prevents very slow motions from being recognized as gestures
Minimum points 2 points At least 2 tracked points required to determine a direction
Direction threshold 45° (0.7 cosine) Determines when motion is cardinal (L/R/U/D) vs diagonal

These values are fixed and cannot currently be changed without modifying the toolkit.

Gesture and Context Menu Interaction

A stationary right-click fires MSG_RCLICK. A right-button drag that matches a registered pattern fires MSG_GESTURE. The two actions don't interfere — components can support both context menus and gesture shortcuts simultaneously.

Event Sequence

Stationary right-click:
1. MSG_RBUTTONDOWN → User presses right button
2. MSG_RBUTTONUP   → User releases right button
3. MSG_RCLICK      → Right-click event fires

Right-button drag (gesture):
1. MSG_RBUTTONDOWN          → User presses right button
2. MSG_MOUSEMOVE (multiple) → User drags
3. MSG_RBUTTONUP            → User releases right button
4. MSG_GESTURE              → Gesture pattern recognized (if registered)

Example: Gestures + Context Menu

msgProc(event) {
    if (event.message === wakaPAC.MSG_GESTURE) {
        switch(event.detail.pattern) {
            case 'left':
                this.navigateBack();
                return false;

            case 'right':
                this.navigateForward();
                return false;
        }
    }

    if (event.message === wakaPAC.MSG_RCLICK) {
        const pos = wakaPAC.MAKEPOINTS(event.lParam);
        this.showContextMenu(pos.x, pos.y);
        return false;
    }
}

Best Practices

  • Return false when handling gestures: Always return false from MSG_GESTURE handlers to stop further event processing
  • Keep patterns simple: Single-segment patterns (L, R, U, D) are the most reliable. Complex sequences are hard to draw consistently and hard for users to remember
  • Follow browser conventions: Right for forward, left for back — users expect gesture conventions to match their browser
  • Limit pattern count: 4–6 gestures is a practical ceiling before discoverability becomes a problem
  • Provide visual feedback: Consider drawing the gesture trail or briefly displaying the recognized pattern name
  • Don't rely solely on gestures: Gestures work well with a mouse, less reliably with trackpads. Always provide an alternative (button or keyboard shortcut) for every gestured action
